X-Ray Thickness Gauge for Cold Rolling Mill

X Ray Thickness Gauge has been widely used in petroleum, chemical, steel, building materials and other industries. As a reliable X Ray thickness gauge manufacturer in China, we have developed a variety of thickness gauge products according to different needs of customers by introducing American technology in 2004 in non-ferrous metals, steel and other industries such as: The thickness measurement control system of the cold rolling production process for steel strip, copper strip, aluminum strip, aluminum foil, gold foil, silver foil, the specific model is as follows:

1) OWT-1011 X- ray thickness gauge/ gamma-raythicknessgauge
OWT-1011 thickness gauge adopts Am-241 isotope ray source and γ- ray ionization chamber as detector. The instrument has functions such as thickness display, data communication, zero degree full scale adjustment and error compensation. This thickness gauge is used with one-way, reversible, continuous rolling mills. It can realize the online detection, real-time reflection of thickness changes, easy to manual operation in the production process.

2) OWT-1011-2 X-ray thickness gauge
The OWT-1011-2 is an X-ray thickness gauge adopts an imported X-ray tube instead of an isotope source. It is safe and controllable in open, stop and turn off with no radiation output. An X-ray ionization chamber is used as the detector. The meter has functions such as thickness display, data communication, zero degree full scale adjustment, and error compensation. This thickness gauge is used with one-way, reversible, continuous rolling mills. It can realize the online detection, real-time reflection of thickness changes, easy to manual operation in the production process.

3) OWT-1021 X- ray thickness gauge
The OWT-1021 is a γ-ray isotope thickness gauge is with a closed loop function.

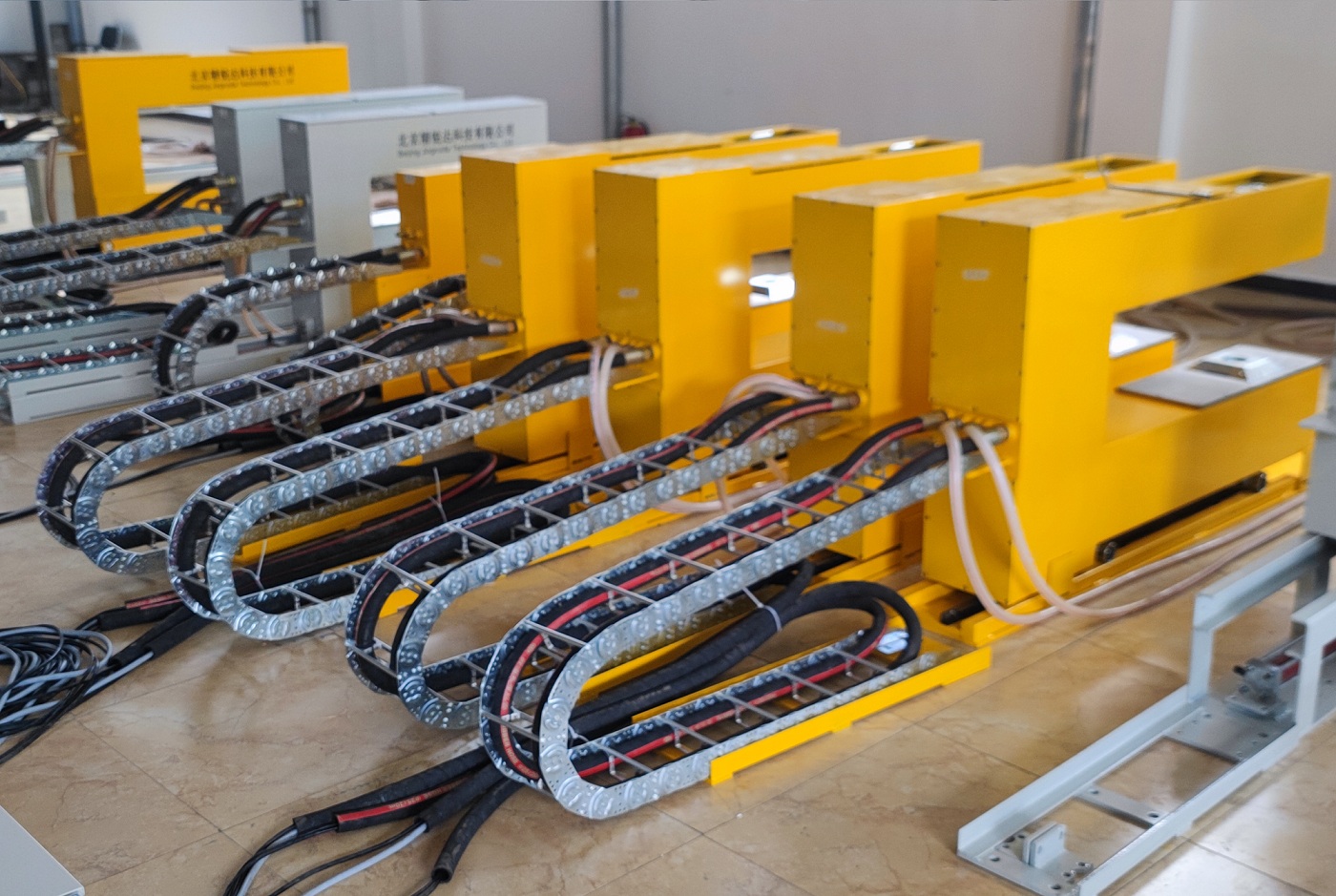

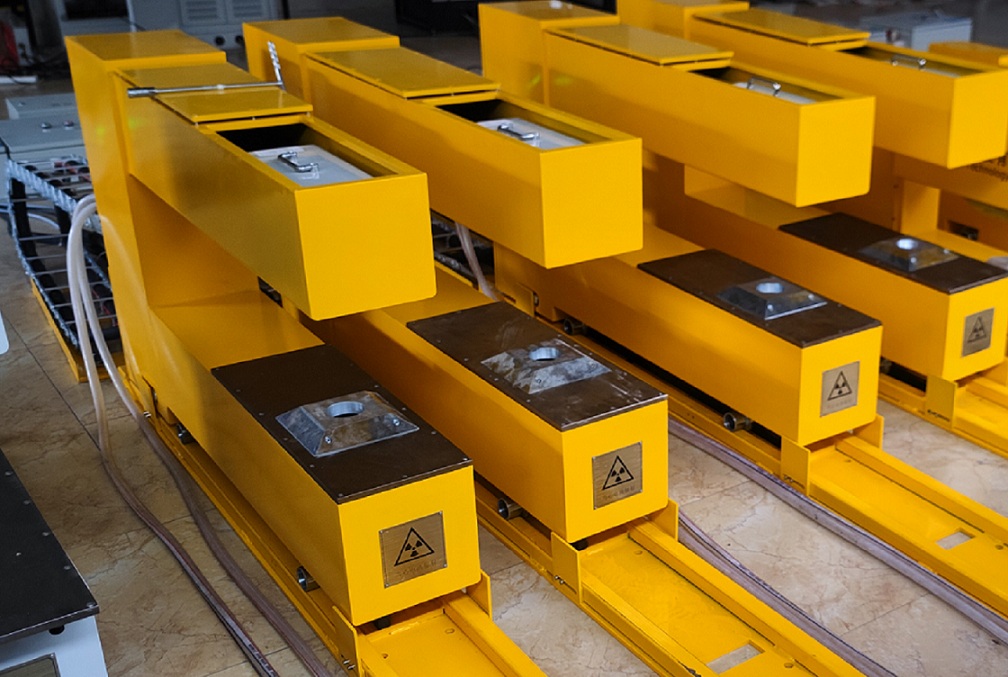

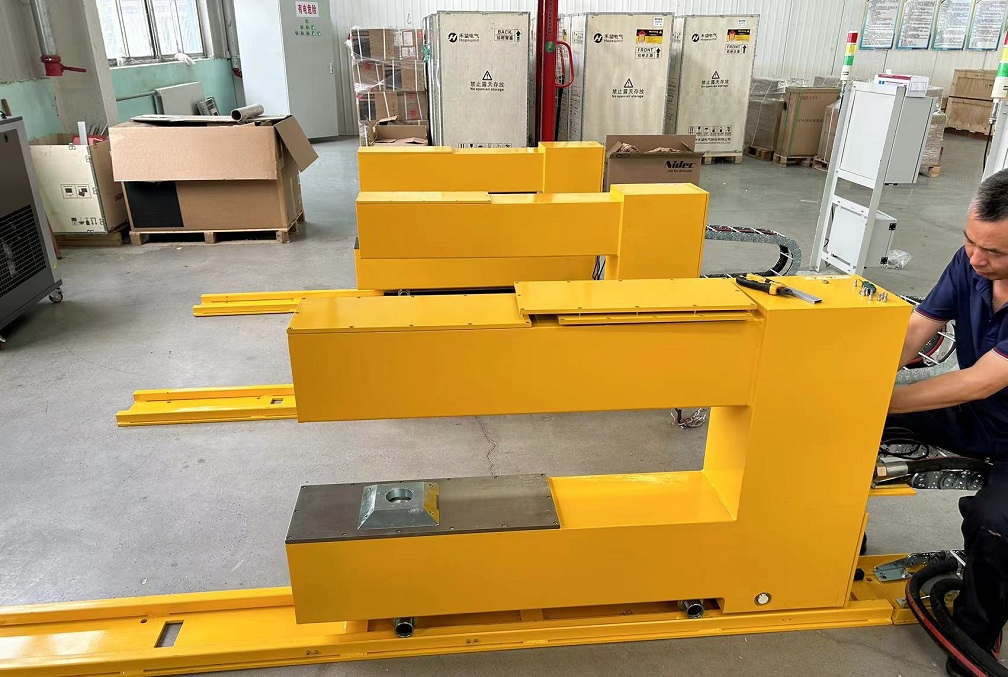

 Its system uses a high-performance industrial control machine as the host to process the C-frame measurement system and simultaneously outputs the thickness deviation signal to the post-adjustment (AGC). The industrial display is used as the operation interface to implement man-machine dialogue, real-time display and transmission of various data, and parameters modification. The thickness gauge is used in conjunction with a one-way, reversible, continuous rolling mill with a rear-adjusting hydraulic AGC.

4) OWT-1031 X-ray thickness gauge
OWT-1031 is an X-ray thickness gauge specially developed by our company on the basis of OWT-1021 γ-ray isotope thickness gauge. It uses imported X-ray source instead of radioisotope. Features: Use open, stop and turn off with no ray output, safe and controllable. The thickness gauge has a closed loop function. The system uses a high-performance industrial control machine as the host to process the C-frame measurement system, and simultaneously outputs the thickness deviation signal to the post-adjustment (AGC). The industrial display is used as the operation interface to implement the man-machine dialogue. , real-time display and transfer various data and parameter modification. This thickness gauge is used with a one-way, reversible, continuous rolling mill with a rear-adjusting hydraulic AGC.

5) Upgrade product introduction

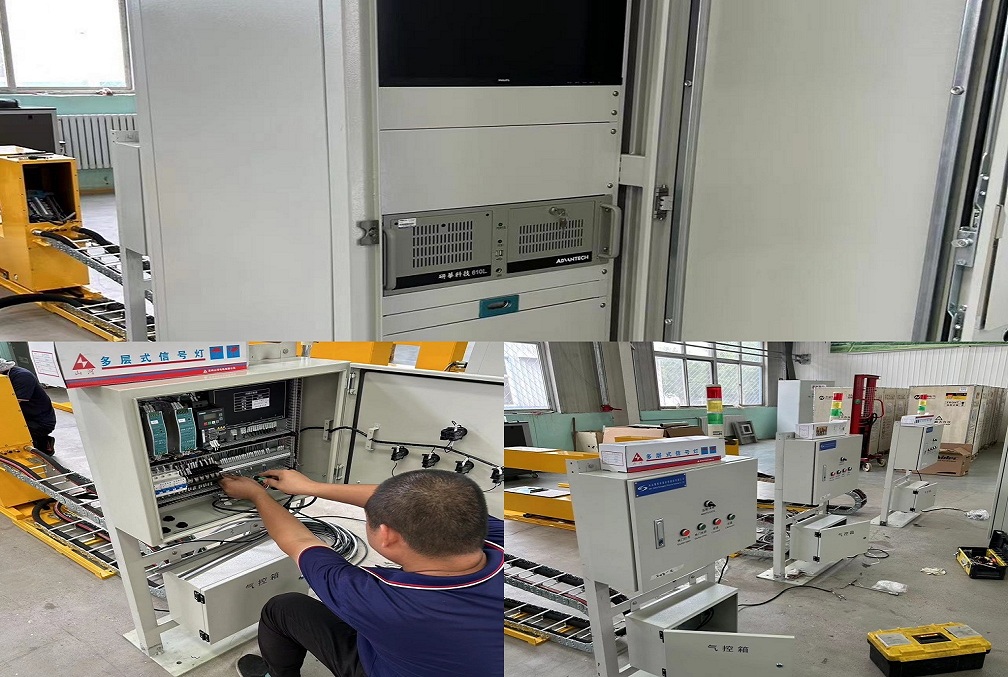

Based on the customer's needs, the company has added an industrial control system based on the OWT1011 and OWT1011-2 thickness gauges. The system can perform online data exchange with the OWT1011 and OWT1011-2 thickness gauges. It can complete the functions of saving and printing of rolling records, over-the-counter alarms, etc., and can complete product upgrades.
