Temper mill

Basic Info.

Model NO.

Temper Mill

Highest Speed

480m/Min-1000m/Min

Maximum Tension

14 Tons

Roller Type

2-Hi /2-Roller Temper Mill, 4-Hi/4-Roller Temper

Width

350-1450mm

Application

Plain Carbon Steel, Stainless Steel

Transport Package

Plastic Film, Plywood Box or as Required

Specification

it depends on the specification

Trademark

Moran or customized

Origin

China

HS Code

8455900000

Production Capacity

5 Sets

Product Description

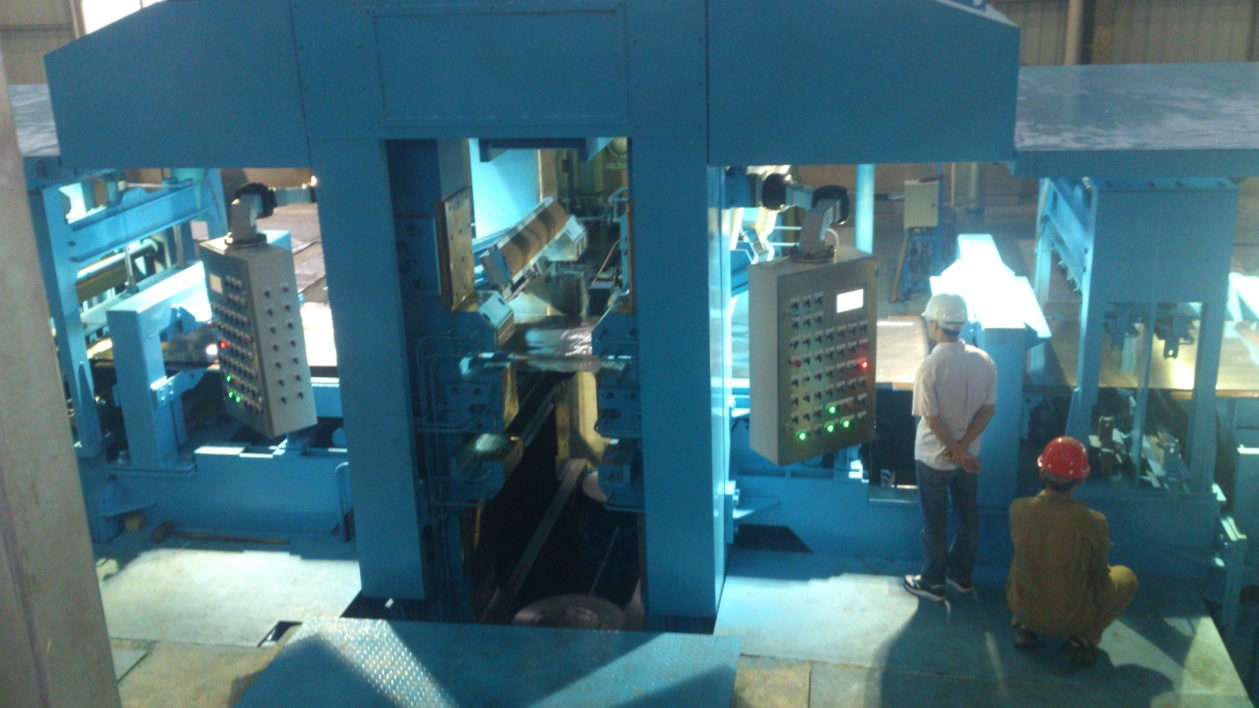

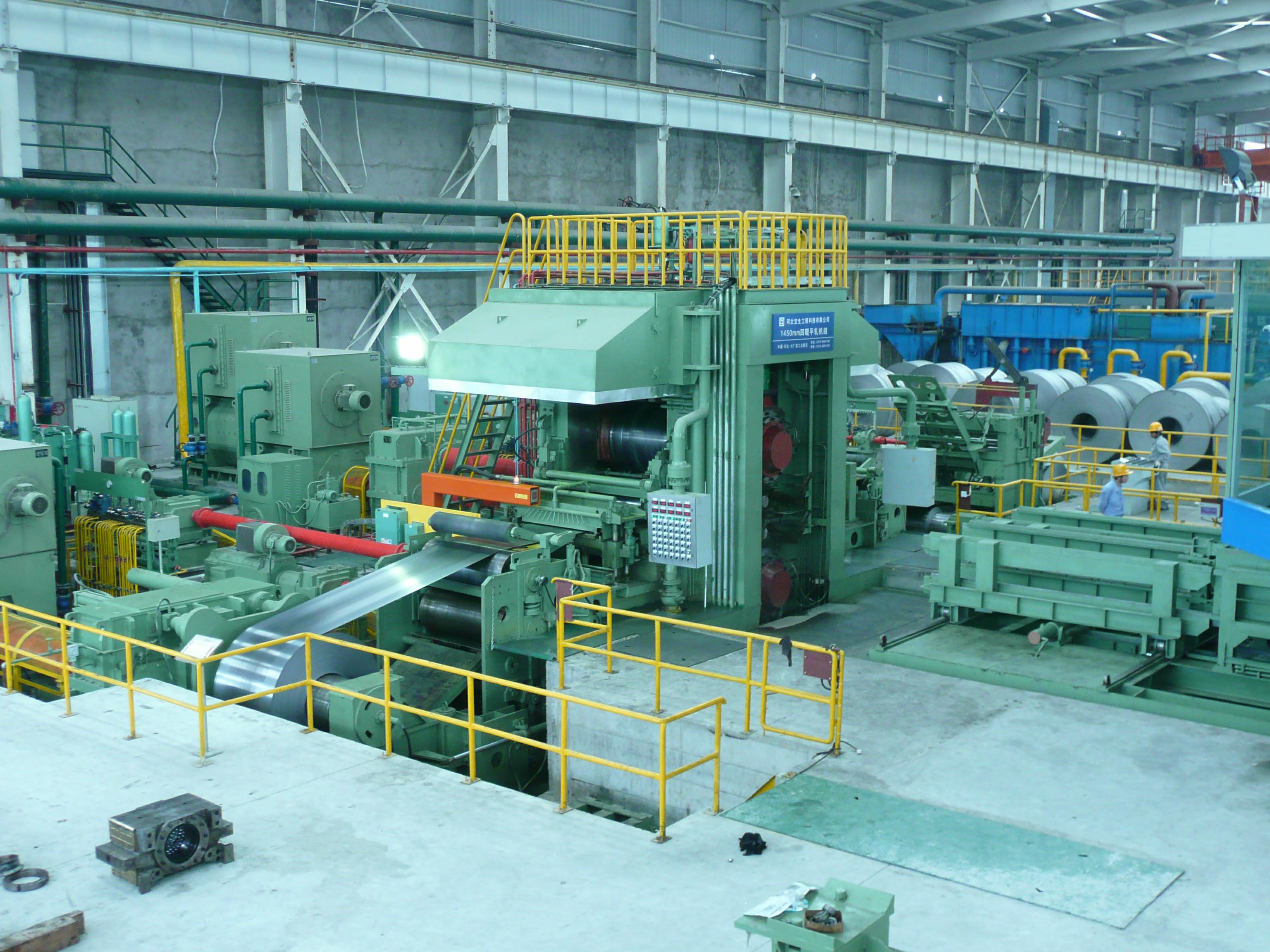

Customized Temper mill /Temper pass mill/Skin pass mill and Tension leveler complex

Moran Machinery provides you the complete and high value-added pre- sales & after-sales services. Factory design, selection of utility & auxiliary facilities, unit process layout, civil foundation design reference, as well as the well-rounded training combined with theory and hands-on exercises for line operators and maintainers, all are freely available.

We will offer you the turnkey solution of temper pass mill according to your request.

No.	Parameter & function
1	Function	Dry flattening and wet flattening
2	S rolls	Vertically or horizontally arranged as required
3	Highest speed	1000m/min
4	Maximum tension	14 tons
5	Configuration	Narrow lap welding machine, roll cleaning device, oil-gas lubrication system for roll bearing, laser velocimeter, tensiometer, outlet thickness gauge.
6	Electric drive system	Siemens S7-400 PLC as main controller and AGC system is controlled by Siemens S7-416+FM458
7	Key elements are from leading manufacturers	MOOG servo valve, SONY magnetic scale, POLYTEC laser velocimeter, Dr-Brandt tensiometer

a) Application: plain carbon steel, stainless steel

b) 2-roller temper mill and 4-roller temper mill

c) Width: 350-1450mm
