1450 pickling line

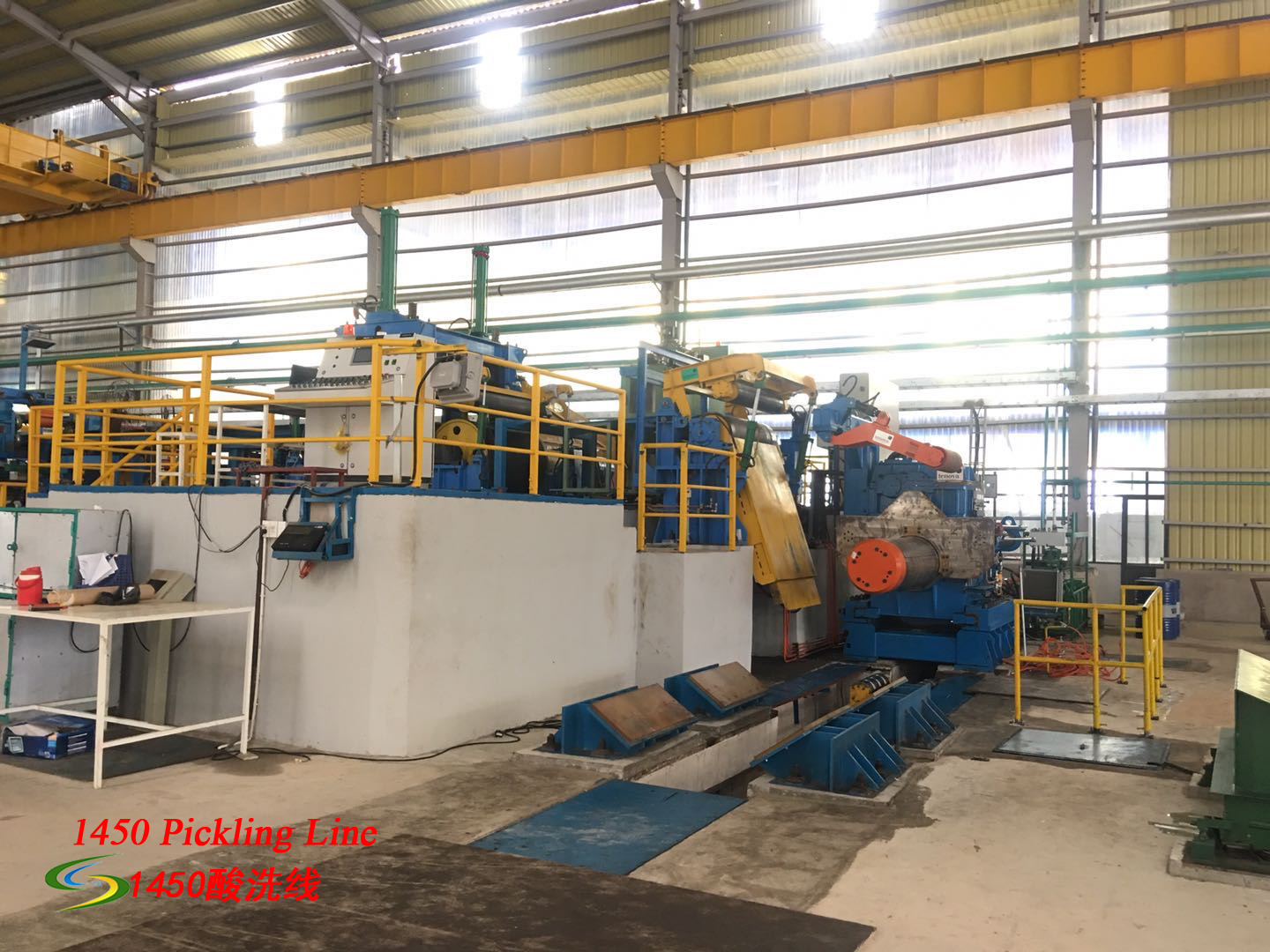

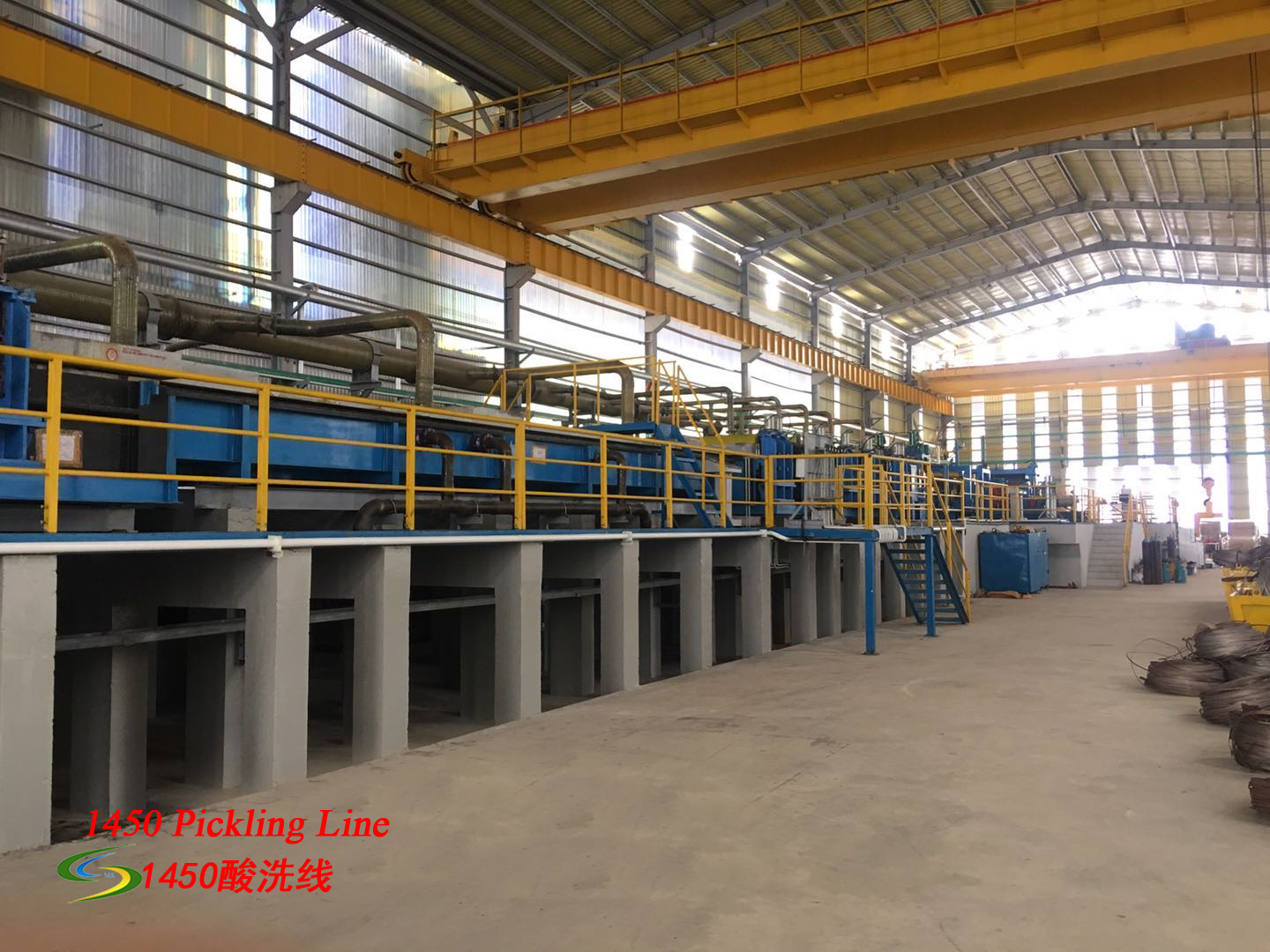

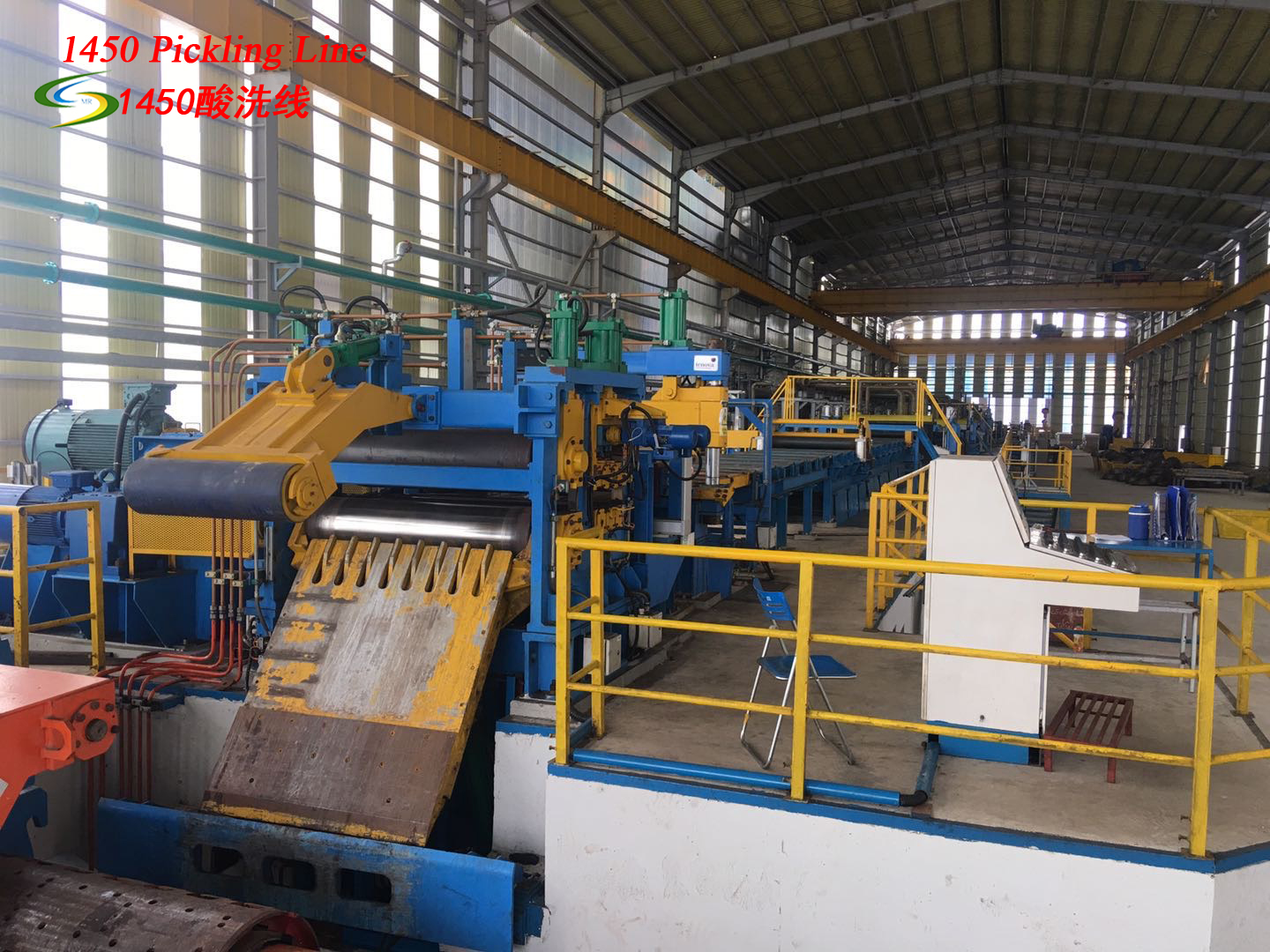

Vietnam 1450 pickling line

The pickling unit is 1450mm push-pull pickling line with an annual output of 400000 tons. The unit adopts the relatively advanced shallow groove turbulent pickling technology, which has the characteristics of reasonable equipment structure, high operation efficiency, low production consumption, convenient operation and less equipment operation failure. The control system adopts advanced Siemens Programmable system, which ensures the stable operation, simple maintenance and low maintenance cost of the equipment.

Basic Info.

Model NO.

pickling line

Process Method

Push-Pull Shallow Trough Turbulence Hydrochloric a

Apu Layout Direction

Left to Right When Seating at Operation out Board

Max. Process Speed

70-150m/Min

Process Speed in Changing Coil

50-60m/Min

Point Move Speed

10-30m/Min

Transmission Way

AC Driving System, Speed Regulated by Variation

Acid Concentration Max

200g/L HCl, 125g/L Fe2+, 5 G/L Fe3+

Fluorine Content in Acid

Less Than 4ppm

Minimum Pickling Time

26s

Acid Trough Length in Total: About

50m

Transport Package

Plastic Film/Plywood Box / as Clients′ Required

Specification

it depends on the specification

Trademark

Moran or customized

Origin

Hebei, China

HS Code

722100000

Production Capacity

5-10 Sets

Product Description

General introduction of Push Pull Pickling Line

Pickling line is used to clean out the surface of hot rolled steel strip. It also contains surface leveling, side trimming and rust prevent function.

During the last 13 years working in pickling process, Moran continues improve its technology on pickling rate, production efficiency, machine reliability and environmental protection.

Push Pull Acid Pickling Line

Today Moran supplies shallow turbulence type pickling line with following type

*Steel rube granite tanks + FRP cover
*Granite tanks and cover + steel frame
*PPH tank and cover + steel frame and granite inner

Technical parameter:
Input Material:	Hot rolled Coil
Coil Thickness Range:
Max. Coil Width:
Max. Line Speed:
Pickling Medium:	HCL
Max. Coil Weight:
Max. Anneal Capacity:

Hebei Moran provides the customers with all-around, high value-added pre- sales & after-sales services. Factory design, selection of utility & auxiliary facilities, unit process layout, civil foundation design reference, as well as the well-rounded training combined with theory and hands-on exercises for line operators and maintainers, all are freely available.
