It includes models with width range between 650mm and 1450mm, with the highest speed of 1200m/min, the maximum rolling force of 2000T and the maximum coiling tension of 24 tons.
It includes models with width range between 650mm and 1450mm, with the highest speed of 1200m/min, the maximum rolling force of 2000T and the maximum coiling tension of 24 tons.
Four-roll, Six-roll cold rolling mill
It includes models with width range between 650mm and 1450mm, with the highest speed of 1200m/min, the maximum rolling force of 2000T and the maximum coiling tension of 24 tons. It can be used for rolling alloy steel such as 65Mn and 30 CrMo, allows various profile adjustment ways such as positive/negative bending of working roll, bending and twitching of intermediate roll, depressing for deviation adjustment and cooling roll step by step, and can be provided with double-station roll changing carriage, oil-gas lubrication system for roll bearing and automatic rolling line adjustment device. The electric drive system adopts Siemens S7-400 PLC as the main controller and AGC system is controlled by Siemens S7-416+FM458. Key elements, such as EMG automatic centering system, MOOG servo valve, SONY magnetic scale, POLYTEC laser velocimeter and Dr-Brandt tensionmenter, are imported products.

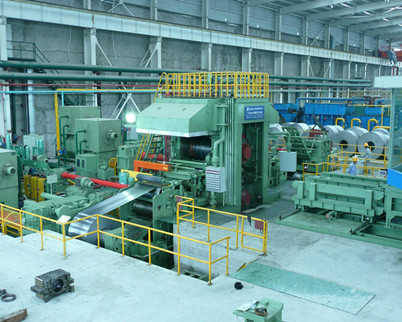

650mm 4Hi Reversible Cold Rolling Mill Unit( Low configuration)
1.Brief Introduction
The unit will carry out finish rolling of stainless steel coils with material thickness of 2.5-3.25mm. After several passes of rolling, it will be rolled into high-precision cold-rolled steel coils of 0.5-1.95mm, using a single-stand reversible four-roll cold rolling mill to ensure high-speed and stable production of thin gauge products.
2.Main Technical parameters of cold rolling mill
No | Specification | Data |
1 | Specification of Rolling Mill | 160/550650 mm
|
2 | Drive Mode | Support Roll drive |
3 | Max Rolling Pressure | 6000KN |
4 | Max Rolling Speed | 120m/min(low gear); for the high gear: 360-480mpm |
5 | Max rolling torque | 335 KN*M |
5 | Winding tension | 0-70KN |
6 | Winding speed | 0-130m/min |
7 | Work roll size | F160×650 mm |
9 | Back roll size | F550×600 mm |
11 | Solid core diameter of mandrel of coiling machine | F500 mm |
12 | Rolling line elevation | +1000 mm |
13 | Housing section | 35cm×45cm=1575 cm2 |
14 | Turning Roller diameter | 200 mm |
15 | Unit mechanical equipment electrical installation capacity | DC: 430KW+185*2KW=800KW AC: ≈200 KW |
16 | Maximum Lifting component weight | ≈5 t(supporting roll device) |
17 | maximum installation part weight | ≈13 t( housing section) |
18 | Unit dimensions | ≈8x14x4 m |
3.Product Program
Standard of coming material
Material quality | 300 series stainless steel |
Mechanical Properties | σs≤400 N/mm2 |
Thickness | 2.5~3.25mm |
Width | 350-550mm |
Rolling diameter(interior /exterior) | Φ500/1600/mm |
The maximum rolling weight | 6t |
Standard of finished products
Thickness | 0.5-1.95mm |
Width | 350-550mm |
Rolling diameter(interior/exterior) | Φ500/(Φ1600)mm |
The maximum rolling weight | 6t |
4.Equipment Level
1)The main components of the low pressure hydraulic system and the hydraulic pump adopt domestic high quality products;
2)The gears of the important drive equipment reducer, such as the coiler and the main rolling mill, adopt the hard tooth surface grinding gear; the bearings of the coiling machine and the main rolling mill reducer are selected with domestic high quality products.
3)The Eurotherm 590 All Digital DC Speed Regulator is adopted to Simulate constant tension control method
5.Sales Performance Table of 4 Hi Cold Rolling Mill
序号 | 年份 | 业主名称 | 机组规格 |
No | Year | Clients | Production Line Specification |
1 | 2017 | 揭阳YS带钢有限公司Jieyang YS Steel Coil Co.,Ltd. | 550mm四辊平整拉矫联合机组 550 mm 4 Hi temper mill & tension leveler machine |
2 | 2015 | 浙江XD板业有限公司 Zhejiang XD steel plate Co,Ltd | 900mm四辊轧机拆装改造 900 mm 4 Hi cold rolling mill demolition modification |
3 | 2015 | 揭阳市KL不锈钢公司Jieyang KL Stainless Steel Co.,Ltd. | 900mm四辊轧机改造 900mm 4 Hi cold rolling mill modification |
4 | 2013 | 广东RX实业有限公司Guangdong RX Industrial Investment Co., Ltd. | 1450mm四辊不锈钢平整机组 1450 mm 4 Hi stainless steel temper mill |
5 | 2012 | 无锡市WY机械制造有限公司 Wuxi WY Mechanical Manufacturing Co.,Ltd | 1200mm四辊平整机组项目 1200mm 4 Hi skin pass mill |
6 | 2012 | 山东省博兴县SN不锈钢有限公司Shandong SN stainless steel Co., Ltd. | 1250mm四辊轧平机1250mm 4 Hi reversible cold rolling mill machine |
7 | 2009 | 河北YC玻璃金属制品公司Hebei YC Glass Metal Product Co.,Ltd. | 850mm 四辊可逆冷轧机组 850mm 4 Hi reversible cold rolling mill modification |
8 | 2008 | 天津SJ制钢有限公司 Tianjin SJ Steel Co, Ltd. | 650mm 四辊不可逆冷轧机组 650 mm 4 Hi cold rolling mill |
9 | 2007 | 上海HBF合金材料有公司Shanghai HBF Alloy Material Co.,Ltd. | 1450mm 四辊可逆轧平机组 1450mm 4 Hi reversible cold rolling mill unit |
10 | 2006 | BS钢铁制品有限公司 Bd Iron and Steel Products Co., Ltd. | 1450mm 四辊平整机组 1450mm 4 Hi temper mill machine |
11 | 2004 | BS钢铁制品有限公司 Bd Iron and Steel Products Co., Ltd. | 1250mm 四辊可逆普碳钢冷精轧机1250mm 4 Hi reversible cold rolling mill machine |
12 | 2003 | BS钢铁制品有限公司 Bd Iron and Steel Products Co., Ltd. | 650mm四辊冷轧机组650mm 4 Hi cold rolling mill machine |
6. If the above specification or configuration is not you desired, please fill the following table, we will offer you what you required.
NO序号 | Items参数名称 | Specification requirements参数 | Items参数名称 | Specification requirements参数 | Remarks简要说明 |
1 | Material Grades原料材质 | Purpose of use成品用途 | |||
2 | Entry thickness 原料厚度 | Exit thickness 成品厚度 | |||
3 | Entry width原料宽度 | Inner diameter of finished products成品内径 | |||
4 | Inner diameter of incoming material原料内径 | Outer diameter of finished product成品外径 | |||
5 | Outer diameter of incoming material原料外径 | Annual output年产量 | |||
6 | Max weight of incoming coil原料重量 | Max speed requirements运行速度 |
7. The Range of Our Main Cold Rolling Mills, Cold Rolling Production Lin
Specification of Cold Rolling Mill | |
roller Type | 4-roller , 6-roller, 8-roller, 12-roller, 20-roller cold rolling mill. |
Stand Type | single-stand reversible cold rolling mill; tandem cold rolling mill( from 3 stands to 6 stands) |
Size of finished products | Width: from 350-1450mm; Thickness: from 0.1mm to 3.0mm |
Application | our range of products covers all areas of the cold rolling industry, suitable for the production and upstream & downstream sectors of cold-rolled products such as plain carbon steel, stainless steel, alloy steel coil and plate. |
Hebei Moran provides the customers with all-around, high value-added pre- sales & after-sales services. Factory design, selection of utility & auxiliary facilities, unit process layout, civil foundation design reference, as well as the well-rounded training combined with theory and hands-on exercises for line operators and maintainers, all are freely available.
Our advantage:
1) Customized Production
2) High cost-effective product
3). All-around pre-sales & after-sales services
4) Independent intellectual property rights
