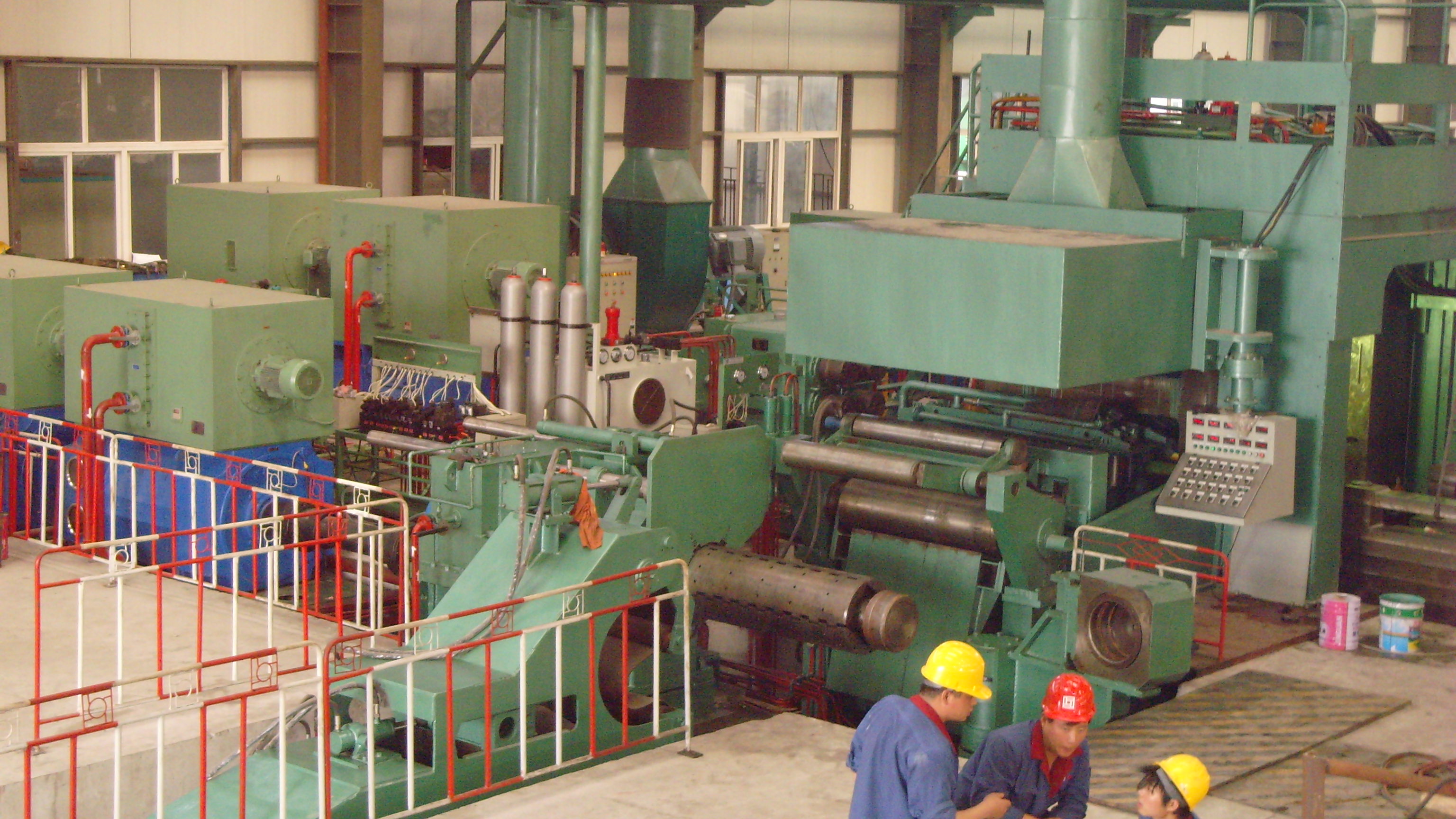

1250mm 6 Hi reversible cold rolling mill

The 1250mm 6Hi Cold Rolling Mill is used to roll 1.5-4.0mm(thick) *650-1050mm (width) hot rolled coil after pickling or rerolled steel after annealing into 0.13-1.5mm cold rolled steel coil.



1250mm 6Hi Reversible Cold Rolling Mill

1. Its usage

The 1250mm 6Hi Cold Rolling Mill is used to roll 1.5-4.0mm(thick) *650-1050mm (width) hot rolled coil after pickling or rerolled steel after annealing into 0.13-1.5mm cold rolled steel coil.



2. Technical data of the Mill

NoSpecification  Data
1Max   Rolling Pressure12000KN
2Max   Rolling Torque78kN·m
3Max   Rolling Speed600m/min
4Max   threading speed30m/min
5Max   coiling speed650m/min
6Max   coiling tension120KN
7 Barrel length of work roll Φ250~Φ230×1250 mm
8Max   opening20mm(   at the max


3. Product Outline

Standard of coming material


Specification of Raw MaterialPickled hot rolled steel coil or Secondary rolled steel coil after annealing



Material qualityCarbon structural steel and   high quality carbon structural steel, such as Q195、Q235、08A1、SPHC、SPHD
Material propertiesбs≤360   N/mm2,бb≤650   N/mm2
Thickness1.5~4.0mm
Width650mm-1050mm
Rolling diameter(/interior)Φ610mm
Rolling diameter(/exterior)maxΦ2000mm
The maximum rolling weight20t


Standard of finished products

Thickness0.13-1.5 mm
Width650mm-1050mm
Rolling diameter(/interior)Φ508mm
Rolling diameter(/exterior)Φ2000mm
The maximum rolling weight20t



4. Equipment Level

This 1250mm 6-hi reversible cold rolling mill was customized according to clients’ requirements with characteristic of mature, stable in technology, easy to operate and maintain, cost-effective, etc. It can satisfy the clients’specification in gauge and output.

5. Sales Performance Table of 6 Hi Cold Rolling Mill

序号年份业主名称机组规格
NoYearClientsProduction Line Specification
12018越南胡志明Hu Chi Minh City, Vietnam1422 6辊中速轧机            1422mm 6Hi Reversible Cold Rolling Mill ( Medium speed)

3

2018乌兹别克斯坦
Uzbekistan




1450mm六辊高速轧机组                 1450mm 6 Hi Cold Rolling Mill Unit( High speed)
142014东阿YK板业有限公司DongE YK Plate   Co., Ltd.1450mm六辊可逆冷轧机组     1450mm 6 Hi   reversible cold rolling mill machine
152013云南RT钢业公司Yunnan RT Steel   Co.,Ltd.1450mm六辊可逆轧机          1450mm   6 Hi reversible cold rolling mill machine
192012山东省博兴县YG铁有限公司                             Shandong YG Steel Co., Ltd.1250mm六辊轧机1250mm 6 Hi reversible cold rolling mill   machine
212011BS钢铁制品有限公司 Bd Iron and Steel Products Co., Ltd.1450mm六辊高速轧机                 1450mm 6 Hi reversible cold rolling mill machine
252010东阿SS薄板有限公司Shandong Dong’e SS Sheet Co.,   Ltd.800mm六辊可逆冷轧机组         800 mm 6 Hi reversible cold rolling mill machine
262010东阿YK板业有限公司DongE YK Plate   Co., Ltd.1250mm六辊冷轧机组                     1250mm 6 Hi reversible cold rolling mill   machine
272009重庆市LH金属制品有公司Chongqing LH   Metal Product Co,Ltd.1150mm 六辊可逆冷轧机组        1150mm    6 Hi reversible cold rolling mill machine
292009廊坊FX金属制品有限公司Langfang FX   Metal Product Co.,Ltd.450mm  六辊可逆冷轧机组改造450mm 6 Hi reversible cold rolling mill  modification
352008天津SJ制钢有限公司    Tianjin SJ Steel Co, Ltd.650mm  六辊可逆冷轧机组            650mm 6 Hi reversible cold rolling mill
442005天津LXBY钢铁有限公司Tianjin LXBY   Steel Co.,Ltd.1250mm 六辊可逆普碳钢冷精轧机1250mm   6 Hi reversible cold rolling mill machine

6. High end customized Manufacture for Cold Rolling Mill

If the advertised cold rolling mill is not what you need, please fill the following table, we will offer you what you required.

NO序号Items参数名称Specification requirements参数Items参数名称Specification requirements参数Remarks简要说明
1Material   Grades原料材质
Purpose of use成品用途

2Entry thickness  原料厚度
Exit thickness    成品厚度

3Entry width原料宽度
Inner diameter   of finished products成品内径

4Inner diameter   of incoming material原料内径
Outer diameter   of finished product成品外径

5Outer diameter   of incoming material原料外径
Annual output年产量

6Max weight of   incoming coil原料重量
Max speed   requirements运行速度

7. Our advantage:

1) Customized Production

2) High cost-effective product

3). All-around pre-sales & after-sales services

4) Independent intellectual property rights


For more information, please feel free to contact us.
