1450 6-roll reversible cold rolling unit is the cold rolling production line with designed annual output of 225 thousand tons and adopts UCM-type single-stand mill.
1450 6-roll reversible cold rolling unit is the cold rolling production line with designed annual output of 225 thousand tons and adopts UCM-type single-stand mill.
Four-roll, Six-roll cold rolling mill
It includes models with width range between 650mm and 1450mm, with the highest speed of 1200m/min, the maximum rolling force of 2000T and the maximum coiling tension of 24 tons. It can be used for rolling alloy steel such as 65Mn and 30 CrMo, allows various profile adjustment ways such as positive/negative bending of working roll, bending and twitching of intermediate roll, depressing for deviation adjustment and cooling roll step by step, and can be provided with double-station roll changing carriage, oil-gas lubrication system for roll bearing and automatic rolling line adjustment device. The electric drive system adopts Siemens S7-400 PLC as the main controller and AGC system is controlled by Siemens S7-416+FM458. Key elements, such as EMG automatic centering system, MOOG servo valve, SONY magnetic scale, POLYTEC laser velocimeter and Dr-Brandt tensionmenter, are imported products.

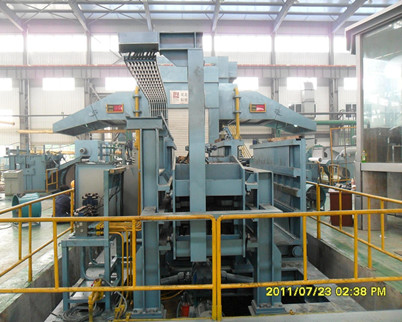

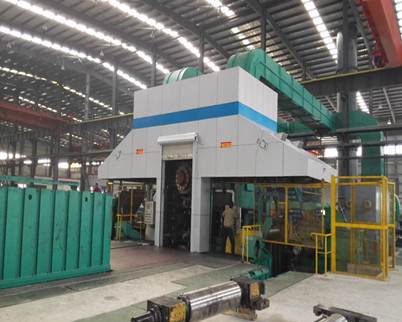

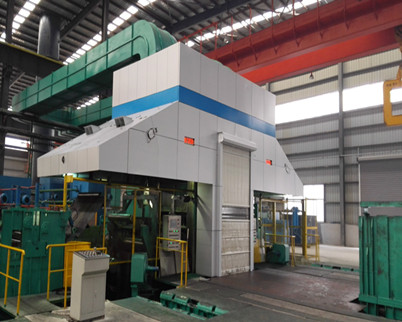

1450mm 6hi cold rolling mill
1. Its usage
To roll high quality cold rolled steel coil( plain carbon steel)
2. Brief Introduction:
The production of this unit is to roll hot rolled coils with the thickness of 2.0～4.5mm into high precision cold rolled coils with the thickness of 0.18～1.5mm through several time of rolling. The scale of the cold rolling production line is a production of 225 thousand tons of cold rolled steel coils per year. It adopts the UCM-type single-stand 6-roll reversible cold rolling mill. The work roll of the rolling mill is equipped with positive and negative bending. The intermediate roll is equipped with positive bending and twitch. The uncoiler is equipped. Both front and rear frames are equipped with coiler, thickness gauge, laser velocimeter etc., which can realize large tension rolling and guarantee high-speed and stable production with specified thinness.
3. Technical Data
Rolling mill specification: 1250 450 370 1450mm
Working roll size: 370～3301450 mm
Intermediate roll size: 450～4001450 mm
Max rolling pressure: 18000 KN
Max rolling speed: 1200m/min
Outline dimension of the Unit (length x width x height): ≈25x31x11 m
Finished product precision:
Longitudinal thickness tolerance(rolling at stable speed):
＜±0.005mm(d≤0.5mm)
＜±1.0%d (d＞0.5mm)
Longitudinal thickness tolerance(speeding up or slowing down): ＜±0.01mm(d≤0.5mm)
＜±2.0%d (d＞0.5mm)
Coil mandrel diameter of the uncoiler: 560～ 620 mm (entire circle 610 mm)
Coil mandrel diameter of the coiler: 495～ 510 mm (entire circle 508 mm)
Unit drive direction: Left side of blooming pass strip heading direction
4. Product Program:
Material: Mechnical Property: Requirements: Input Thickness: Input Width: Coiling diameter: Max coil weight: Output Thickness: | Q195、08Al、Q235、SPHC、SPHD、SPHE σs≤380 N/mm² 1) Strip camber: ≤5mm/2m; tower: ≤5mm 2) Strip passband tolerance: ≤±0.15mm; transverse difference: ≤0.20mm 3) Uniform hardness, and no obvious defects like inclusions, sinkholes or raw edges. 1.2~4.5 mm 800~1300 mm F610/F2000 mm 26 T 0.18-1.5mm |
5. Sales Performance Table of 1450mm series cold rolling mill production line
| 1450mm Series Cold Rolling Mill Records | |||||
| No | Specification | Max Speed（M/Min） | Input material | Maxmium Thickness (mm) | Location |
| 1 | 6-Hi | 1000M/min | Plain carbon steel | 0.18mm | Hebei Province |
| 2 | 1200M/min | 0.18mm | Shandong Province | ||
| 3 | 1200 M/min | 0.18mm | Uzbekistan | ||
| 4 | 600M/min | 0.18mm | Yunan Province | ||
| 5 | 4Hi | 600M/min | 0.18mm | Shanghai | |
| 6 | 4Hi Temper Mill | 600M/min | 0.18mm | Hebei Province | |
| 7 | 4Hi | 300M/min | Stainless steel | Guangdong Province | |
| 8 | 8Hi | 360M/min | Plain carbon steel | Guangdong Province | |
| 9 | 20Hi | 600M/min | 0.08mm | Hebei Province | |
| 10 | 20Hi | 480M/min | Stainless steel | 0.1mm | Guangdong Province |
| 11 | 20 Hi | 480M/min | 0.1mm | Fujian Province | |
| 12 | Tension Leveller | 240M/min | Plain carbon steel | Hebei Province | |
| 13 | Tension Leveller | 150M/min | Jiangsu Province | ||
| 14 | Push pull Acid Pickling Line | 80M/min | Hebei Province | ||
| Note: the 1450mm width means the width of working roll, the actual steel strip width is 100mm-150mm narrower than the width of working roll. | |||||
6.The Range of Our Main Cold Rolling Mills, Cold Rolling Production Line
| Specification of Cold Rolling Mill | |
| roller Type | 4-roller , 6-roller, 8-roller, 12-roller, 20-roller cold rolling mill. |
| Stand Type | single-stand reversible cold rolling mill; tandem cold rolling mill( from 3 stands to 6 stands) |
| Size of finished products | Width: from 350-1450mm; Thickness: from 0.1mm to 3.0mm |
| Application | our range of products covers all areas of the cold rolling industry, suitable for the production and upstream & downstream sectors of cold-rolled products such as plain carbon steel, stainless steel, alloy steel coil and plate. |
Hebei Moran provides the customers with all-around, high value-added pre- sales & after-sales services. Factory design, selection of utility & auxiliary facilities, unit process layout, civil foundation design reference, as well as the well-rounded training combined with theory and hands-on exercises for line operators and maintainers, all are freely available.
Our advantage:
1) Customized Production
2) High cost-effective product
3). All-around pre-sales & after-sales services
4) Independent intellectual property rights
For more information, please feel free to contact us!
