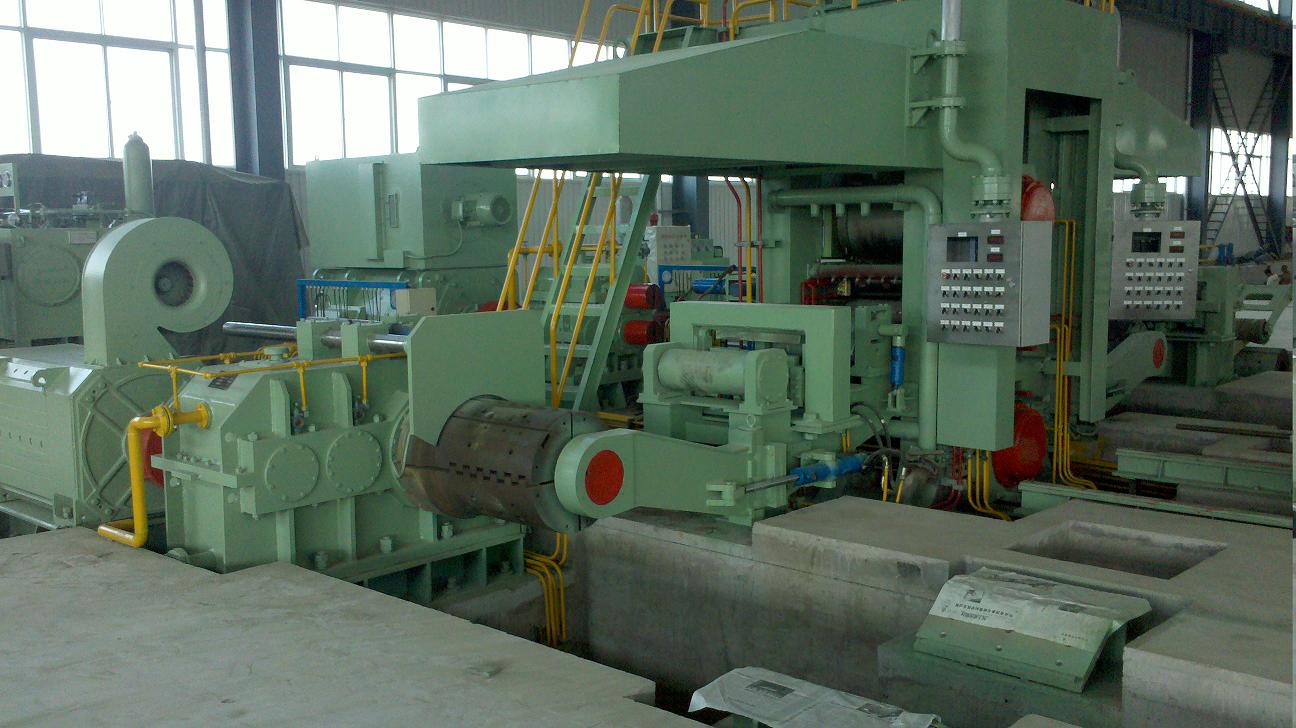

650mm 6Hi Reversible Cold Rolling Mill
1. Its usage
The 650mm 6Hi Cold Rolling Mill was always designed according clients’ requirement, it can roll 2.0-4.0mm thick picked hot rolled steel plate SPCC, SPCD, 08A1, ST12, DC01 into 0.5-1.5mm thick cold rolled steel coil.
2. Technical data of the Mill
No | Specification | Data |
1 | Specification of Rolling Mill | 600/250/200*650mm |
2 | Max Rolling Pressure | 400 Tons |
3 | Max Rolling Torque | 36kN·m |
4 | Max Rolling Speed | 400m/min |
5 | Max threading speed | 18m/min |
6 | Max coiling speed | 420m/min |
7 | Max coiling tension | 10 ton ( Max) |
8 | Barrel length of work roll | Φ200/Φ180×650㎜ |
9 | Max opening | 20mm( at the max |
3.Product Program
Standard of coming material
Material quality | Picked Hot rolled steel coil SPCC SPCD, 08A1,ST12, DC01 |
Thickness | 2.0~4.0mm |
Width | 300-550mm |
Rolling diameter(interior /exterior) | Φ600/(Φ900-Φ1800)mm |
The maximum rolling weight | 9t |
Standard of finished products
Thickness | 0.5-1.5mm |
Width | 300-550mm |
Rolling diameter(interior/exterior) | Φ600/(Φ900-Φ1800)mm |
finished product precision -Vertical thickness deviation | ±0.01mm |
Plate type precision | The maximum allowable value of unevenness≦20I |
The maximum rolling weight | 9t |
4. Equipment Level
The 650mm 6 roll reversible cold rolling mill consists of the following mechanical equipment: Steel coil storage rack, coiling car, uncoiler, straightener, cross cut shear, entrance unload trolley, entrance coiler, machine front device, 650mm six roll reversible cold rolling mill host column, post machine, outlet storage rack, outlet coiler, exit unload trolley, work roll middle roll change roller and support roll roll-changing device, etc.
5. Sales Performance Table
序号 | 年份 | 业主名称 | 机组规格 |
No | Year | Clients | Production Line Specification |
1 | 2018 | 越南胡志明Hu Chi Minh City, Vietnam | 1422 6辊中速轧机 1422mm 6Hi Reversible Cold Rolling Mill ( Medium speed) |
3 | 2018 | 乌兹别克斯坦Uzbekistan
| 1450mm六辊高速轧机组 1450mm 6 Hi Cold Rolling Mill Unit( High speed) |
14 | 2014 | 东阿YK板业有限公司DongE YK Plate Co., Ltd. | 1450mm六辊可逆冷轧机组 1450mm 6 Hi reversible cold rolling mill machine |
15 | 2013 | 云南RT钢业公司Yunnan RT Steel Co.,Ltd. | 1450mm六辊可逆轧机 1450mm 6 Hi reversible cold rolling mill machine |
19 | 2012 | 山东省博兴县YG铁有限公司 Shandong YG Steel Co., Ltd. | 1250mm六辊轧机1250mm 6 Hi reversible cold rolling mill machine |
21 | 2011 | BS钢铁制品有限公司 Bd Iron and Steel Products Co., Ltd. | 1450mm六辊高速轧机 1450mm 6 Hi reversible cold rolling mill machine |
25 | 2010 | 东阿SS薄板有限公司Shandong Dong’e SS Sheet Co., Ltd. | 800mm六辊可逆冷轧机组 800 mm 6 Hi reversible cold rolling mill machine |
26 | 2010 | 东阿YK板业有限公司DongE YK Plate Co., Ltd. | 1250mm六辊冷轧机组 1250mm 6 Hi reversible cold rolling mill machine |
27 | 2009 | 重庆市LH金属制品有公司Chongqing LH Metal Product Co,Ltd. | 1150mm 六辊可逆冷轧机组 1150mm 6 Hi reversible cold rolling mill machine |
29 | 2009 | 廊坊FX金属制品有限公司Langfang FX Metal Product Co.,Ltd. | 450mm 六辊可逆冷轧机组改造450mm 6 Hi reversible cold rolling mill modification |
35 | 2008 | 天津SJ制钢有限公司 Tianjin SJ Steel Co, Ltd. | 650mm 六辊可逆冷轧机组 650mm 6 Hi reversible cold rolling mill |
44 | 2005 | 天津LXBY钢铁有限公司Tianjin LXBY Steel Co.,Ltd. | 1250mm 六辊可逆普碳钢冷精轧机1250mm 6 Hi reversible cold rolling mill machine |
6. High end customized Manufacture for Cold Rolling Mill
If the advertised cold rolling mill is not what you need, please fill the following table, we will offer you what you required.
NO序号 | Items参数名称 | Specification requirements参数 | Items参数名称 | Specification requirements参数 | Remarks简要说明 |
1 | Material Grades原料材质 | Purpose of use成品用途 | |||
2 | Entry thickness 原料厚度 | Exit thickness 成品厚度 | |||
3 | Entry width原料宽度 | Inner diameter of finished products成品内径 | |||
4 | Inner diameter of incoming material原料内径 | Outer diameter of finished product成品外径 | |||
5 | Outer diameter of incoming material原料外径 | Annual output年产量 | |||
6 | Max weight of incoming coil原料重量 | Max speed requirements运行速度 |
Hebei Moran provides the customers with all-around, high value-added pre- sales & after-sales services. Factory design, selection of utility & auxiliary facilities, unit process layout, civil foundation design reference, as well as the well-rounded training combined with theory and hands-on exercises for line operators and maintainers, all are freely available.
Our advantage:
1) Customized Production
2) High cost-effective product
3). All-around pre-sales & after-sales services
4) Independent intellectual property rights
For more information, please feel free to contact us!
