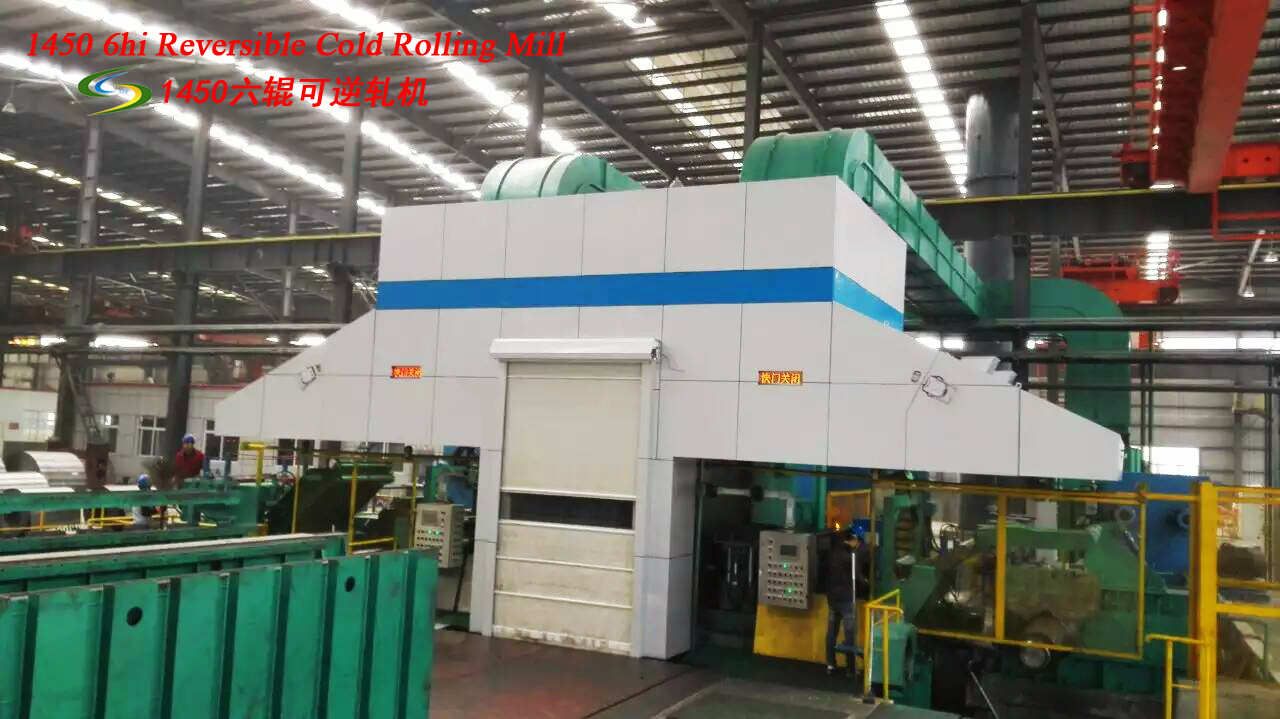

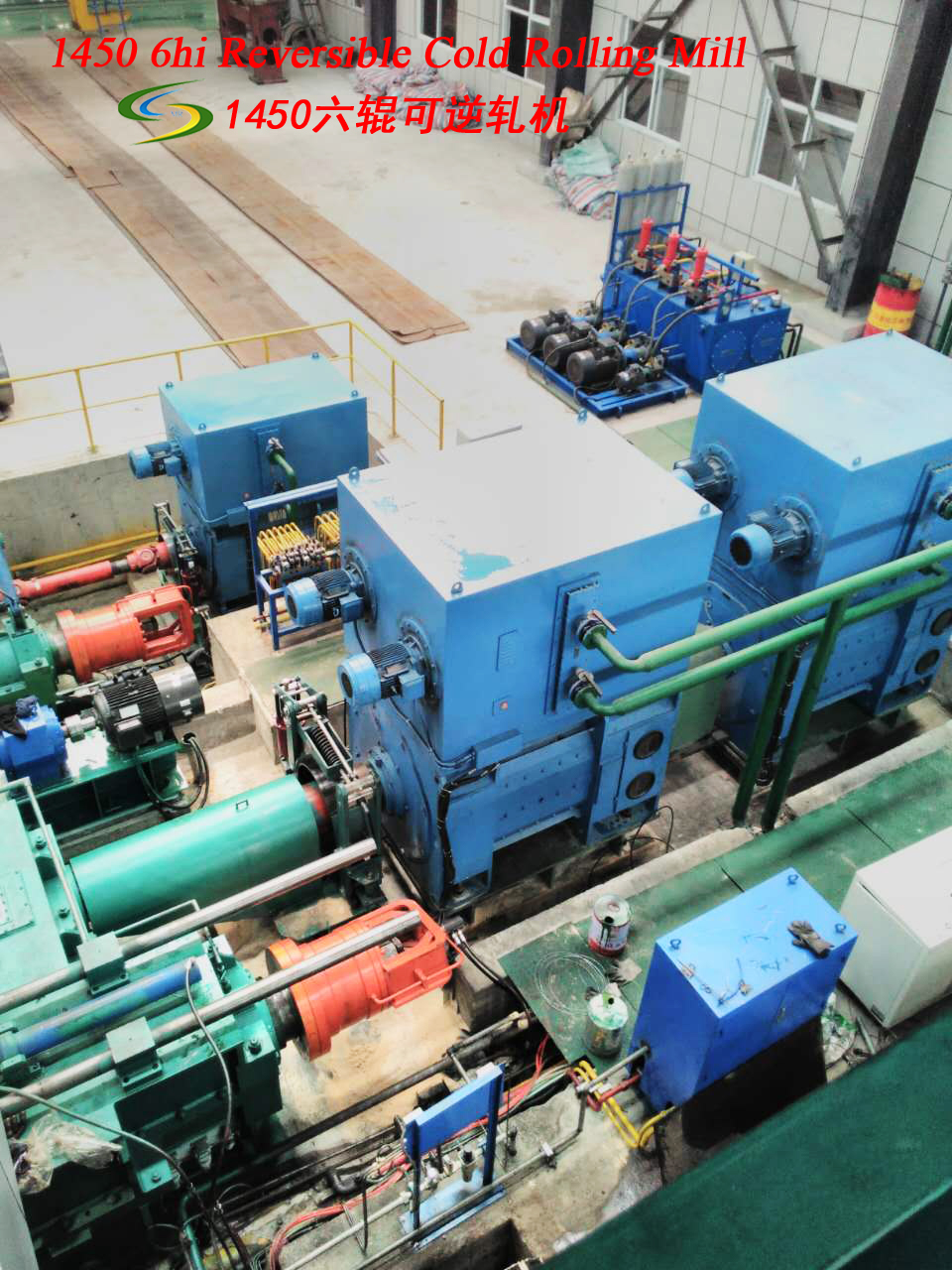

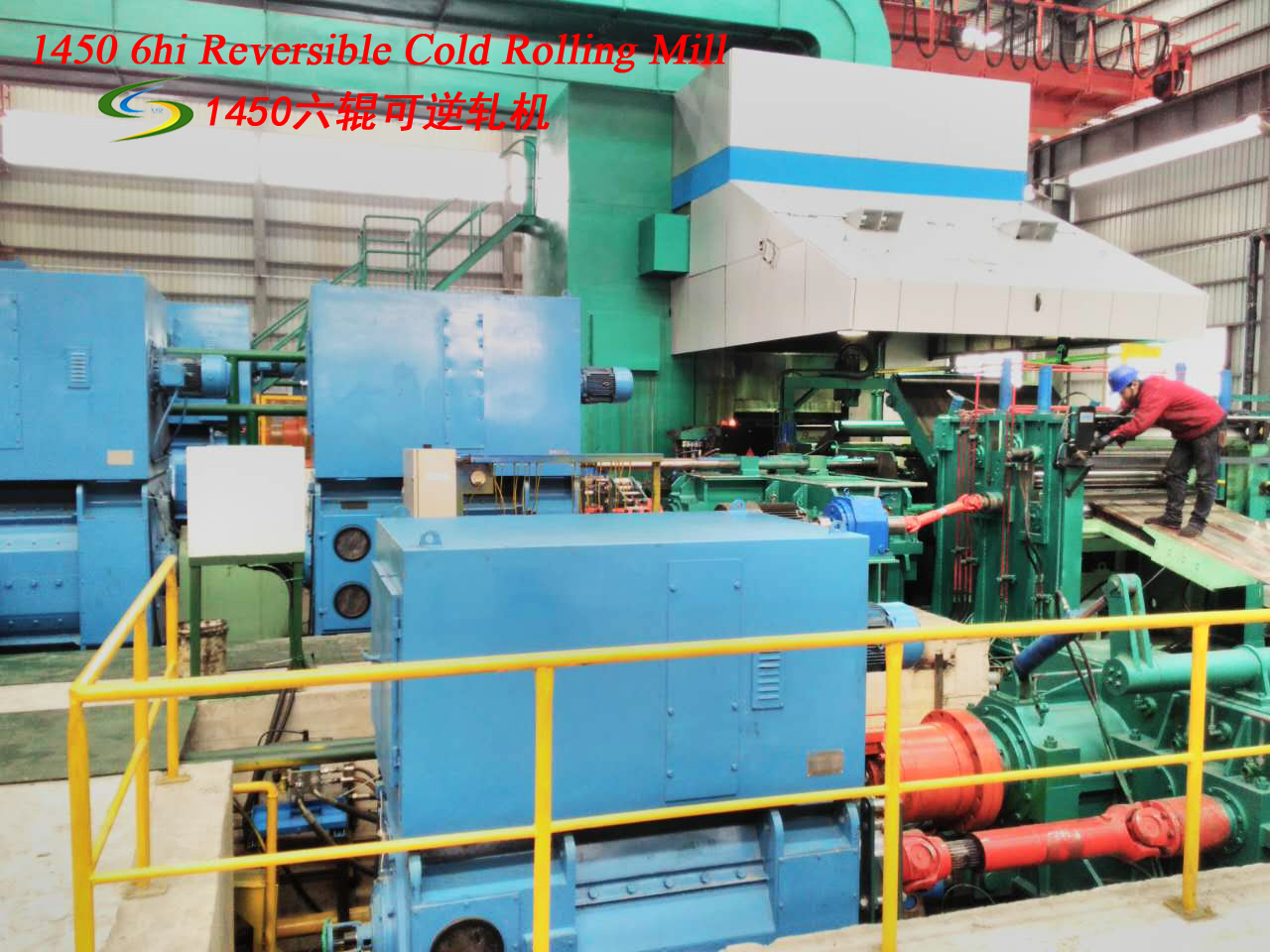

General Information of 1450mm 6-roll Reversible Cold Rolling Unit
1. Brief introduciton of customized 1200mpm 6 hi cold rolling mill /machinery/production line
The production of this unit is to roll hot rolled coils with the thickness of 2.0~4.5mm into high precision cold rolled coils with the thickness of 0.18~1.5mm through several time of rolling. The scale of the cold rolling production line is a production of 225 thousand tons of cold rolled steel coils per year. It adopts the UCM-type single-stand 6-roll reversible cold rolling mill. The work roll of the rolling mill is equipped with positive and negative bending. The intermediate roll is equipped with positive bending and twitch. The uncoiler is equipped. Both front and rear frames are equipped with coiler, thickness gauge, laser velocimeter etc., which can realize large tension rolling and guarantee high-speed and stable production with specified thinness.
2. Characteristics of 1450mm 6-roll Reversible Cold Rolling Unit
1450 6-roll reversible cold rolling unit is the cold rolling production line with designed annual output of 225 thousand tons and adopts UCM-type single-stand mill. Roll pickled hot rolled coils into cold hard coils. The unit is equipped with hydraulic AGC. The work roll is equipped with positive and negative bending and subsection cooling. The intermediate roll is equipped with the positive bending and moving, and the front and rear frames are equipped with double X-ray thickness gauge, double-laser velocimeter, etc. 1450mm six rolling mill.The highest speed is 1200 m/min, the Maximum tension is 18 tons, The maximum rolling force is 1800 tons, The Minimum rolling thickness is 0.18 mm. The Maximum rolling width is 1300 mm
3. For more information , please feel free to contact with me.
if it cannot satisify you, please fill in the design form below, we can manufacture as you required.
NO 序号 | Items参数名称 | Specification requirements 参数 | Items参数名称 | Specification requirements参数 | Remarks 简要说明 |
| 1 | Material Grades原料材质 |
| Purpose of use成品用途 |
|
|
| 2 | Entry thickness 原料厚度 |
| Exit thickness 成品厚度 |
|
|
| 3 | Entry width原料宽度 |
| Inner diameter of finished products成品内径 |
|
|
| 4 | Inner diameter of incoming material原料内径 |
| Outer diameter of finished product成品外径 |
|
|
| 5 | Outer diameter of incoming material原料外径 |
| Annual output年产量 |
|
|
| 6 | Max weight of incoming coil原料重量 |
| Max speed requirements运行速度 |
|
|
