1、Overview:

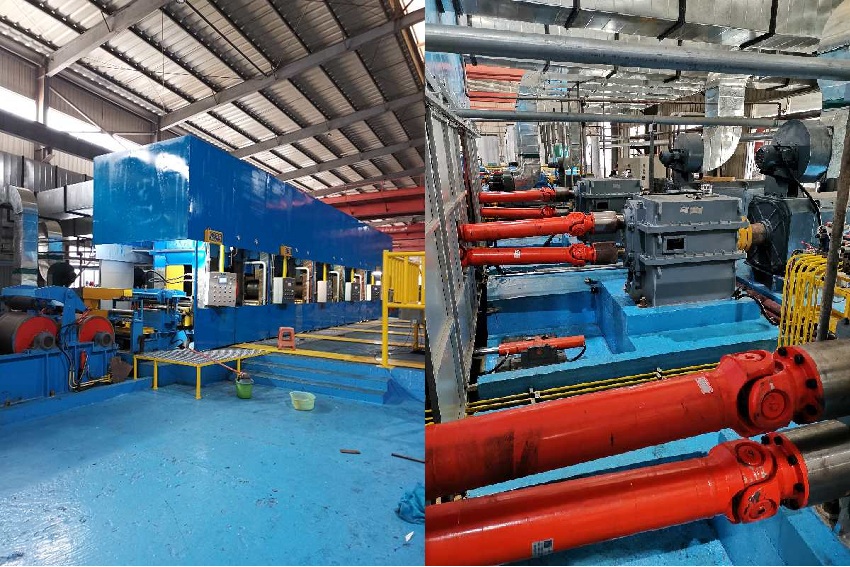

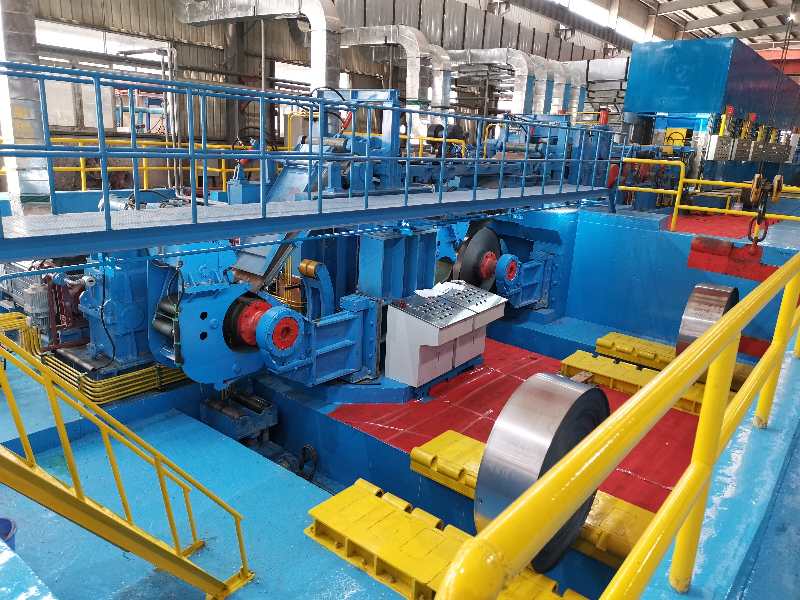

This 850mm four/six high five stand tandem cold rolling mill is used to produce Q195, Q235, SPHC, SPHD, SPHE and other pickling hot rolling strip rolls. The raw material used in the production line is hot rolled steel strip after acid pickling in accordance with national standards. After discharging by the un-coiler, it passes through leveler, floor looper and entrance S roller and enters the five-stand continuous rolling mill for rolling. Finally, it is rolled into the cold-rolled qualified steel strip with the required thickness, and the strip is rolled and packed by the winding machine.
2、Technical Parameters:
| Material: Hot rolled strip after pickling: Q195、Q235、SPHC、SPHD、SPHE | |||
| Thickness of material | 2.5～4.0mm | Thickness of product | 0.4～0.8mm |
| Width of material | 400～750mm | Width of product | 400～750mm |
| Material Coil ID | Φ508mm | Product Coil ID | Φ508mm |
| Material Coil OD | MaxΦ1900mm | Product Coil OD | MaxΦ1900mm |
| Material Coil Weight | 16t | Product Coil Weight | 16t |
| Rolling mill technical parameters | |
| Max Rolling Force | 7500KN |
| Speed | The max designed speed: 500m/min, |
| Threading speed | 0.3～0.5m/s |
| Looper feeding speed | 200 m/min |
| Bending force of work roll | 180 KN（one side） |
| Tension of uncoiling | Max 25 KN |
| Tension of coiling | Max 40 KN |
